430TM

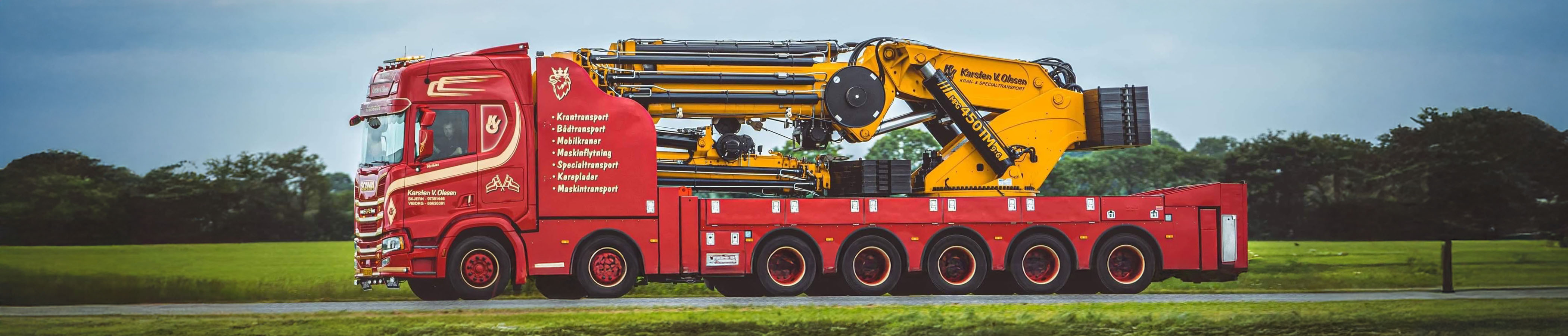

The MPG 430TM is a truck-mounted knuckle boom crane with a total lifting moment of 430 tm. It reaches 33.25 m hydraulically with 9 hydraulic booms and 55.78 m with the 9+6 jib configuration; manual boom extensions increase the reach to 65.72 m. According to its load chart, it lifts 132,269 kg at 3 m; operating pressure is 330 bar and maximum outrigger extension is 9.88 m.

Technical Specifications

	KÇ 9	2KÇ 9+6
Max. Lifting Capacity (at 3 meters)	132269 kg	132269 kg
Max. Hydraulic Boom Extension Reach	33250 mm	55780 mm
Max. Manual Boom Extension Reach	40480 mm	65720 mm
Number of Hydraulic Booms	9	6
Number of Manual Booms	3	3
Total Lifting Moment	430 Tonm
Operating Pressure	330 bar
Rotation Angle	Infinite / Continuous
Max. Outrigger Extension	9880 mm

Capacities

KÇ 9		2KÇ 9+6
mm	kg	mm	kg
3000	132269	38340	1965
5150	77050	41000	1660
6280	62600	43780	1410
8840	41370	46670	1155
11630	29650	49580	955
14380	22350	52550	780
17230	17300	55780	620
20180	13650	58970	500
23350	10850	62300	400
26510	8950	65720	310
29800	7600
33250	6500
36800	4900
40480	3500
