250TM

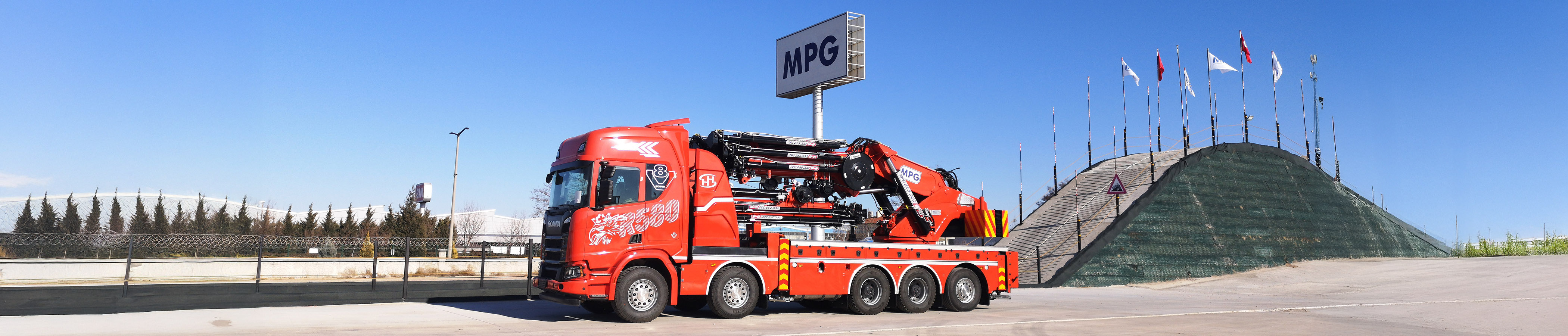

The MPG 250TM is a truck-mounted knuckle boom crane with a total lifting moment of 250 tm. It reaches 24.04 m hydraulically with 8 hydraulic booms and 45.68 m with the 8+6 jib configuration; manual boom extensions increase the reach to 55.78 m. According to its load chart, it lifts 69,083 kg at 3 m; operating pressure is 295 bar and maximum outrigger extension is 8.35 m.

Technical Specifications

	KÇ 8	2KÇ 8+6
Max. Lifting Capacity (at 3 meters)	69083 kg	69083 kg
Max. Hydraulic Boom Extension Reach	24040 mm	45680 mm
Max. Mechanical Boom Extension Reach	30010 mm	55780 mm
Number of Hydraulic Booms	8	6
Number of Manual Booms	3	3
Total Lifting Moment	250 Tonm
Operating Pressure	295 bar
Rotation Angle	Infinite / Continuous
Max. Outrigger Extension	8350 mm

Capacities

KÇ 8		2KÇ 8+6
mm	kg	mm	kg
3000	69083	28880	2210
5365	38630	31430	1850
7350	27360	34080	1530
9435	20180	36830	1250
11620	15450	39680	1000
13905	12090	42630	770
16290	9610	45680	560
18775	7720	48940	370
21360	6240	52300	200
24040	5050	55780	100
26980	4050
30010	2680
