130TM

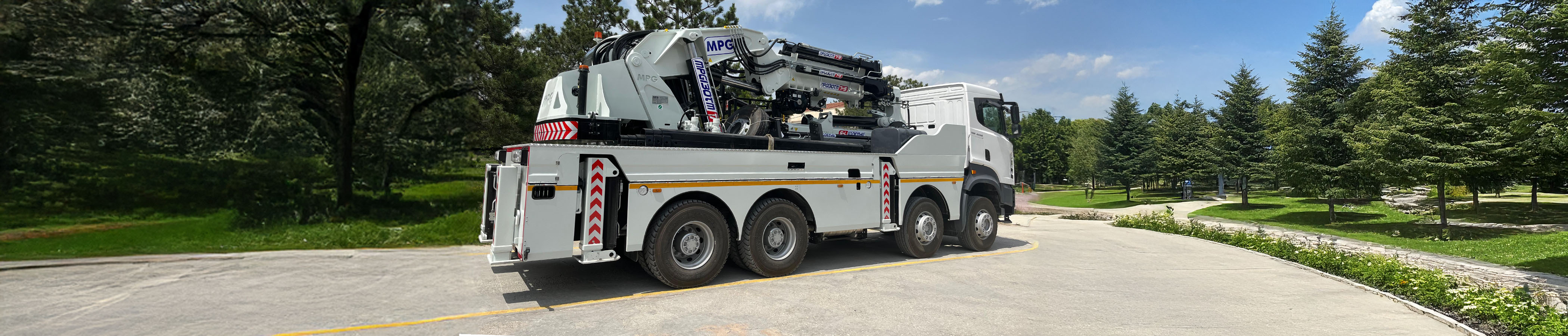

The MPG 130TM is a truck-mounted knuckle boom crane with a total lifting moment of 130 tm. It reaches 18.525 m hydraulically with 7 hydraulic booms and 31.5 m with the 7+5 jib configuration; manual boom extensions increase the reach to 42.42 m. According to its load chart, it lifts 35,730 kg at 3 m; operating pressure is 290 bar and maximum outrigger extension is 8.692 m.

Technical Specifications

	KÇ 7	2KÇ 7+5
Max. Lifting Capacity (at 3 meters)	35730 kg	35730 kg
Max. Hydraulic Boom Extension Reach	18525 mm	31500 mm
Max. Manual Boom Extension Reach	23585 mm	42420 mm
Number of Hydraulic Booms	7	5
Number of Manual Booms	2	3
Total Lifting Moment	130 Tonm
Operating Pressure	290 bar
Rotation Angle	Infinite / Continuous
Max. Outrigger Extension	8692 mm

Capacities

KÇ7		KÇ7+5
mm	kg	mm	kg
3000	35730	22500	2200
3905	27450	24600	1700
6525	15950	26800	1300
8275	12090	29100	990
10125	9460	31500	730
12075	7560	34000	500
14125	6100	36710	330
16275	4960	39515	210
18525	4050	42420	110
21000	3300
23585	2700
